As promised. You can read the history here:
http://www.thumpertalk.com/forum/showthread.php?t=925506

Here are all the gory details:
Bought the bike as an SR250 frame, motor and electrics.
Brought the the engine down to bare cases. Replaced the oile seals, bearings, transmission and everything required to get the bottom end to OEM.
Crank was stroked by Hawera Auto.
Cases bored to accept an oversized YFM350 sleeve.
Cylinder bored to accept a YFM overbore, forged JE Piston
Head severley ported and polished. Oversized warrior valves ground in. Cam was custom ground by Weber Cams in California. Aftermarket springs and titanium retainers used.
Final displacement is 388cc.
After market clutch added.
Kicker added.
VM-34 setup by Sudco, velocity stack is made from a dairy flange.
Frame was chopped in rear and tabs removed.

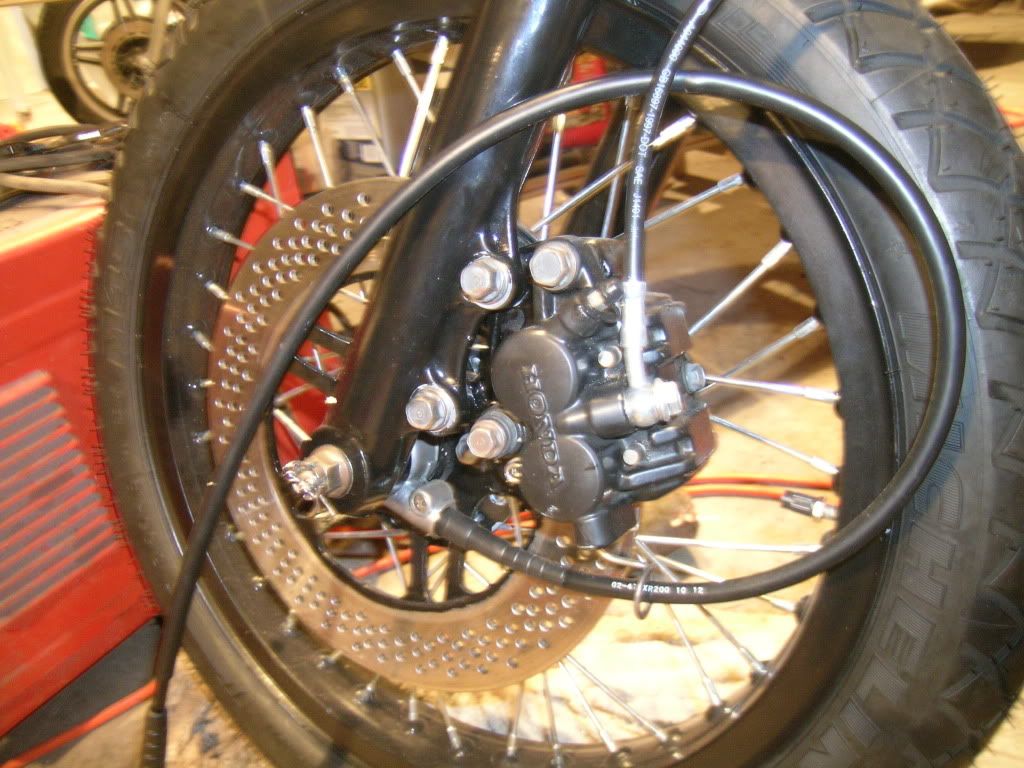

CB250RS front rim used, respoked. Front rotor and double pot caliper added from a CB900C. New stainless line and NOS MC.
CB250RS forks used, shaved and filled. SR250 triples reamed to accept them.
CB250RS rear used, respoked. SR swing arm modified to accept.

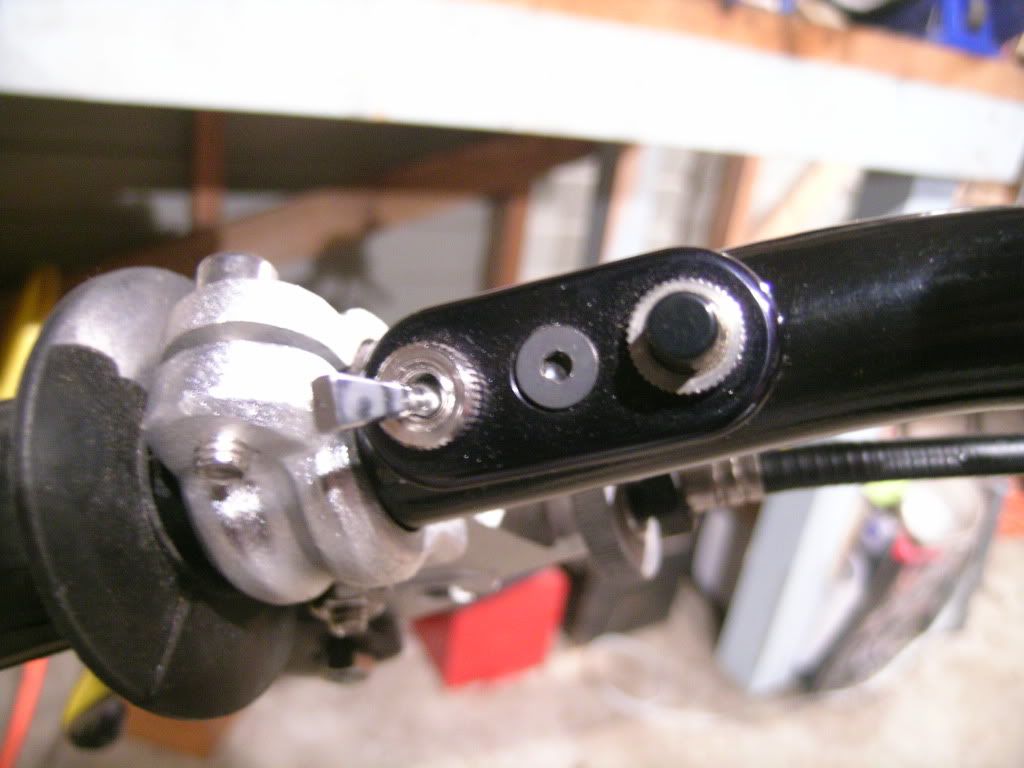

Manx handlebars with POSH internal switches
New stainless exhaust with a Supertrap out of the US.
Honda TL tank reworked, sprayed in a white base with heavy silver flake.
New mid controls and brake pedal.

What do you guys think of the seat? I'm not sure I like it.




Back to top Go down
View user profile
brett7777
Serial Bike Abuser
Serial Bike Abuser


Posts : 1425
Join date : 2010-04-27
Age : 53
Location : Waitakere

PostSubject: Re: Gory details   Thu Jun 23, 2011 3:12 pm

nice work bud
yep I dont like the shape of the seat so much looking down on it, the polished / bare metal look would be cool tho. what about cutting out some shaped holes / patterns out of it? or otherwise cover one in leather or vinyl?
Back to top Go down
View user profile http://bobbers-r-us.weebly.com/
Woody
Serial Bike Abuser
Serial Bike Abuser


Posts : 1302
Join date : 2010-04-26
Location : Wellington

PostSubject: Re: Gory details   Thu Jun 23, 2011 5:35 pm

brett7777 wrote:
nice work bud
yep I dont like the shape of the seat so much looking down on it, the polished / bare metal look would be cool tho. what about cutting out some shaped holes / patterns out of it? or otherwise cover one in leather or vinyl?

Don't worry about him Francois He's just trying to sell you one of his seats. affraid
I like the look of it mate hey and there's no substitute for hand made part's anyhow. Twisted Evil
Sweet looking ride, The less stock shit the better I say.
Back to top Go down
View user profile http://ftw-nz.blogspot.co.nz/
brett7777
Serial Bike Abuser
Serial Bike Abuser


Posts : 1425
Join date : 2010-04-27
Age : 53
Location : Waitakere

PostSubject: Re: Gory details   Thu Jun 23, 2011 5:44 pm

haha no I dont think my seats would suit that bike
Back to top Go down
View user profile http://bobbers-r-us.weebly.com/
francois
Apprentice
Apprentice


Posts : 48
Join date : 2011-06-21
Age : 37
Location : The Naki

PostSubject: Re: Gory details   Thu Jun 23, 2011 6:19 pm

No, I actually agree. The seat is just the blank, it will be covered in leather. I've got enough heavy veg tan to cover it top and bottom, I just need to build a fixture to pre-form it over the padding. That's a good weekend project. You can't see it real well in the photos but the front and rear of the seat have slight curves to them. I was going for this:

Back to top Go down
View user profile
brett7777
Serial Bike Abuser
Serial Bike Abuser


Posts : 1425
Join date : 2010-04-27
Age : 53
Location : Waitakere

PostSubject: Re: Gory details   Thu Jun 23, 2011 6:46 pm

yeah that's a very good look.
haven't seen those Reynal bikes before, so cool, must have a look at some more.
you obviously know your way around a motor, that 388cc from 250cc sounds pretty good, is it running now? have you tried it out?
Back to top Go down
View user profile http://bobbers-r-us.weebly.com/
francois
Apprentice
Apprentice


Posts : 48
Join date : 2011-06-21
Age : 37
Location : The Naki

PostSubject: Re: Gory details   Thu Jun 23, 2011 6:58 pm

I have not started it. I have been operating under the assumption that it works. As soon as I get my alloy battery box back from the welder I can wire and start it. It's only a little thumper so there isn't too much that can go wrong. The engine turns freely, valves are clear, it shifts....not much else it needs to do.

The hardest part was the compression. It's not easy to cc a head in an old NZ shed. I did my best to calculate 11:1, but then the valves hit the piston because of the agressive cam. It was a matter of recutting the pockets in the cylinder and playing with gasket heights. I estimate it's in the 10-10.5:1 range now. We'll see when it actually runs....

I'm finishing the exhaust hangers tonight then I can tig the damn thing, finally, tomorrow.

From the amount of Harley's you guys are working on, I thought I'd post my other project. My mom was ncie enough to pose with it for the photo:
Back to top Go down
View user profile
fokpac
Mechanic
Mechanic


Posts : 75
Join date : 2011-04-10
Age : 46
Location : from the north...live central akl

PostSubject: Re: Gory details   Thu Jun 23, 2011 8:39 pm

cool blog and info.i like them little switches in the bars.like your mum too...does she need residency?
Back to top Go down
View user profile
EEL
Serial Bike Abuser
Serial Bike Abuser


Posts : 314
Join date : 2010-05-26
Location : Wellington

PostSubject: Re: Gory details   Thu Jun 23, 2011 8:44 pm

Holy shit... that's my mum too. Maybe we're related Francois. affraid
Back to top Go down
View user profile
francois
Apprentice
Apprentice


Posts : 48
Join date : 2011-06-21
Age : 37
Location : The Naki

PostSubject: Re: Gory details   Sat Jun 25, 2011 1:18 am

Turns out I suck at tig welding. Luckily there was an engineer to help me clean them up at work. Exhaust is done.

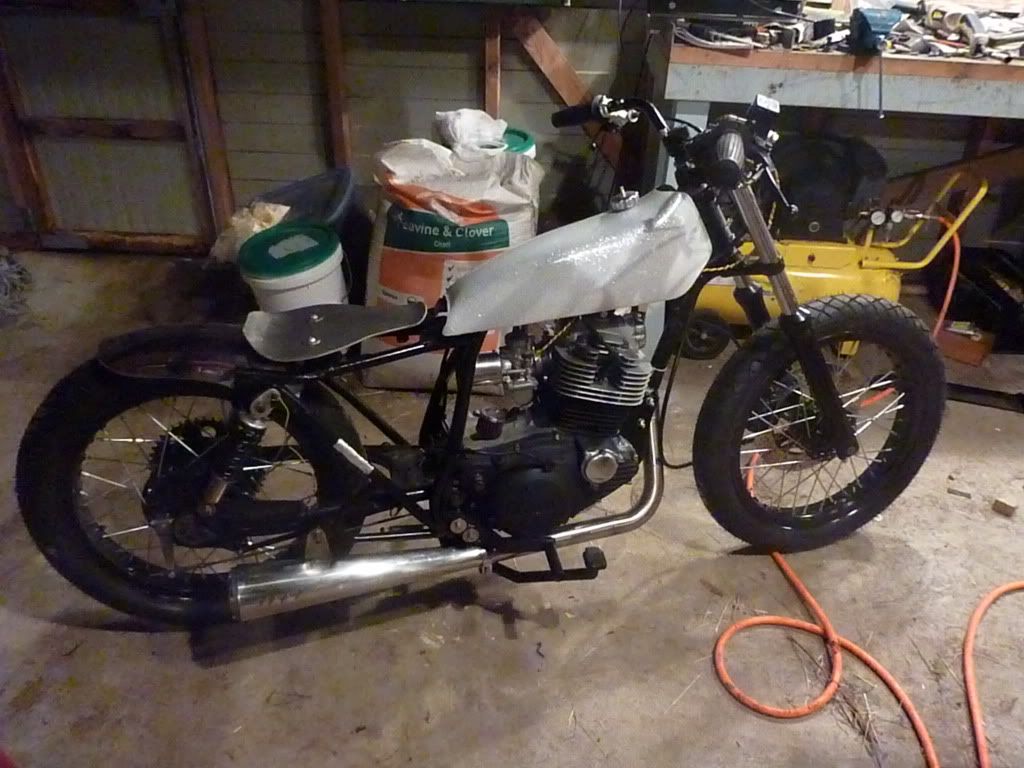

[img][/img]
Back to top Go down
View user profile
Cam
Serial Bike Abuser
Serial Bike Abuser


Posts : 261
Join date : 2010-04-30
Age : 41
Location : Upper Hutt

PostSubject: Re: Gory details   Sat Jun 25, 2011 7:14 am

Hi,cool little bike.Looks like she be fun to ride on a twisty road.I have done a little bit leather work and found if you use right foam on seat,it will be dense enough to shape leather over.Just remember to wet leather first.Last one I put togetherand wraped it a rag and then tape.Come out ok.http://greasemonkeys-nz.forumotion.net/t92-hkr-kustomers-ride-cycowon-best-bike
Back to top Go down
View user profile
brett7777
Serial Bike Abuser
Serial Bike Abuser


Posts : 1425
Join date : 2010-04-27
Age : 53
Location : Waitakere

PostSubject: Re: Gory details   Sat Jun 25, 2011 5:33 pm

I really like it, looks great !
Back to top Go down
View user profile http://bobbers-r-us.weebly.com/
chop
Mechanic
Mechanic


Posts : 64
Join date : 2011-06-25
Location : North shore

PostSubject: Re: Gory details   Sat Jun 25, 2011 8:18 pm

Wholey crap thats cool!! those reynal bikes look wicked as well!
Back to top Go down
View user profile
francois
Apprentice
Apprentice


Posts : 48
Join date : 2011-06-21
Age : 37
Location : The Naki

PostSubject: Re: Gory details   Sun Jun 26, 2011 12:49 pm

Quick question, what do you guys use to glue foam to the seat pans?

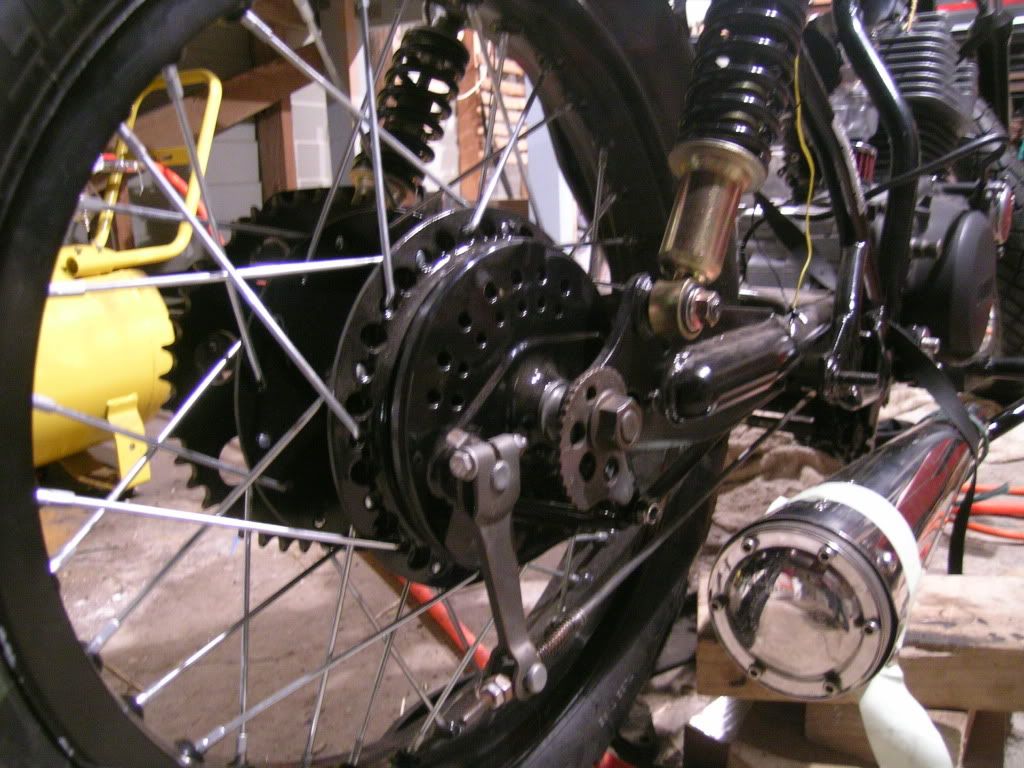

I sorted out the rear wheel axle spacers yesterday, everything's good now. I regret not pwder coating though, I'll be spending a week just touching up all the scratches and chips.

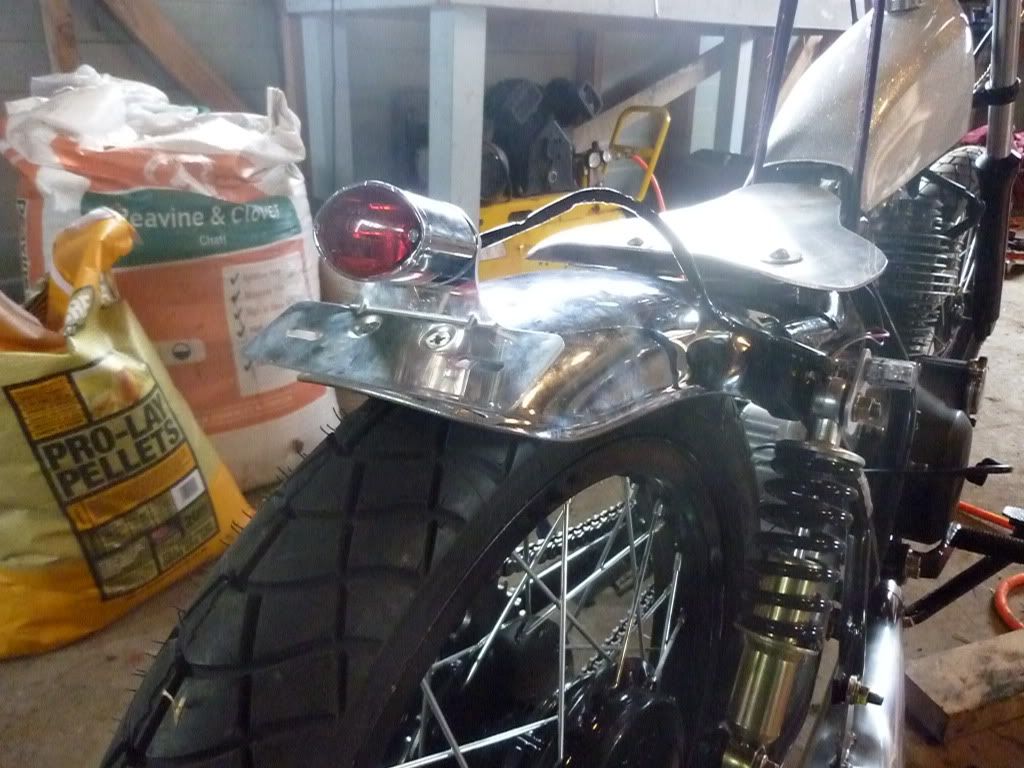

Rear light came in, I need to make up a bracket for it, also playing with speedo locations. I got the left side of the engine together, mounted the shifting mechanism I made and found it doesn't work! The damn foot pegs are mounted on rubber snubbers on an SR250 and when you go to shift with my new mid-sets the pegs deflect and it doesn't shift smoothly. I'll need to think up a plan B.

I want to get the seat pan glued up today so I can lay out the leather. Cam thanks for the leather tips. I could see why for an edge laced seat just taping it would work but I want to butt stitch the edges, so I need the leather pre-formed so it comes out clean. Your seat did come out nice, love the springer front end on that bike. More photos later.....
Back to top Go down
View user profile
mike
Serial Bike Abuser
Serial Bike Abuser


Posts : 628
Join date : 2010-05-16
Age : 35
Location : brisbane

PostSubject: Re: Gory details   Sun Jun 26, 2011 12:59 pm

ide go for ados F2 comes in a spray can
Back to top Go down
View user profile
brett7777
Serial Bike Abuser
Serial Bike Abuser


Posts : 1425
Join date : 2010-04-27
Age : 53
Location : Waitakere

PostSubject: Re: Gory details   Sun Jun 26, 2011 6:31 pm

sorry prob came in way too late here
i have used pva in the past
main thing is it to put woteva glue u gonna use on a test piece of foam cos some glues dissolve foam
Back to top Go down
View user profile http://bobbers-r-us.weebly.com/
Woody
Serial Bike Abuser
Serial Bike Abuser


Posts : 1302
Join date : 2010-04-26
Location : Wellington

PostSubject: Re: Gory details   Sun Jun 26, 2011 6:54 pm

That's right Brett and some dissolve in water too.
Mind you, That's not really a problem for most of you Aucklander's as you don't ride in the rain now do you. Razz Cool Laughing
Back to top Go down
View user profile http://ftw-nz.blogspot.co.nz/
brett7777
Serial Bike Abuser
Serial Bike Abuser


Posts : 1425
Join date : 2010-04-27
Age : 53
Location : Waitakere

PostSubject: Re: Gory details   Sun Jun 26, 2011 7:20 pm

what is this riding in the rain that you speak of?
I have not heard of such things.
anyway Im just off to check the weather forecast now...
Back to top Go down
View user profile http://bobbers-r-us.weebly.com/
francois
Apprentice
Apprentice


Posts : 48
Join date : 2011-06-21
Age : 37
Location : The Naki

PostSubject: Re: Gory details   Sun Jun 26, 2011 11:12 pm

Thanks for the glue tips. I actually didn't get far enough today to work on the seat. I got the rear light on with a new bracket and wires run, chain broken and rear wheel tensioned, both wheels aligned and rear brakes completely setup. Not the most productive day but I am getting to the pain in the ass jobs I've been putting off.

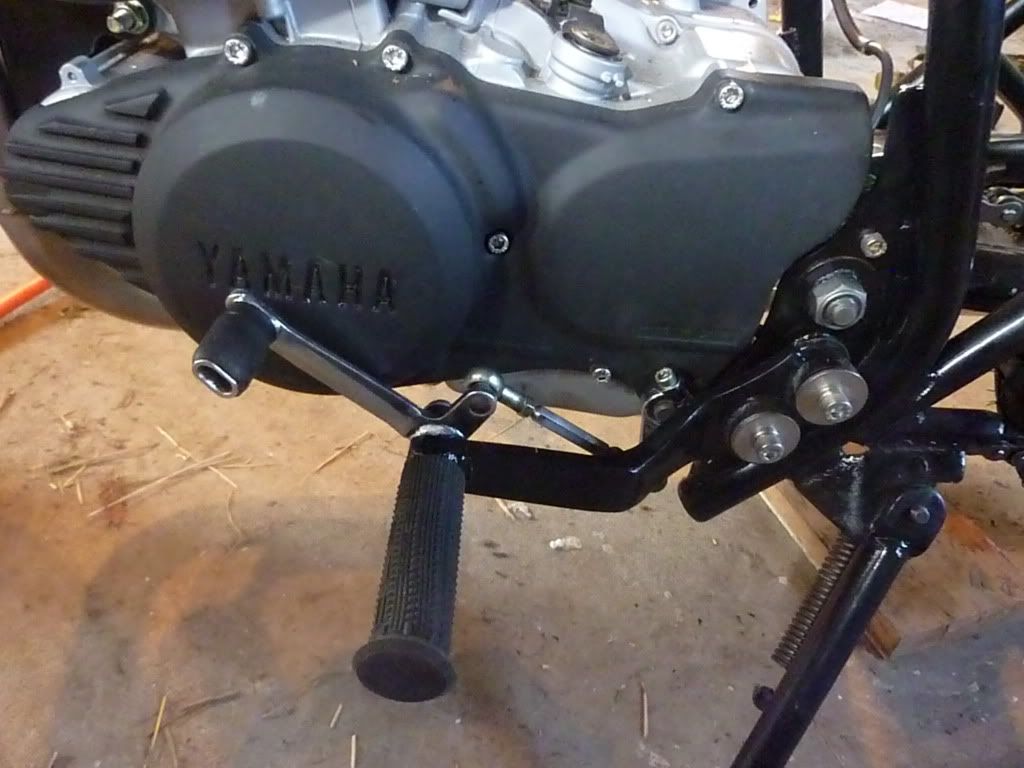

I played with the shifter some more. A friend dropped by the shed today and pointed out that the linkage, in the photo, is actually shifting in reverse to the stock pedal. I thought it was shifting like crap when I couldn't find neutral. Turns out instead of 1 down 4 up, it's 1 up and 4 down. I'll see how it rides before I change it, sort of like it.

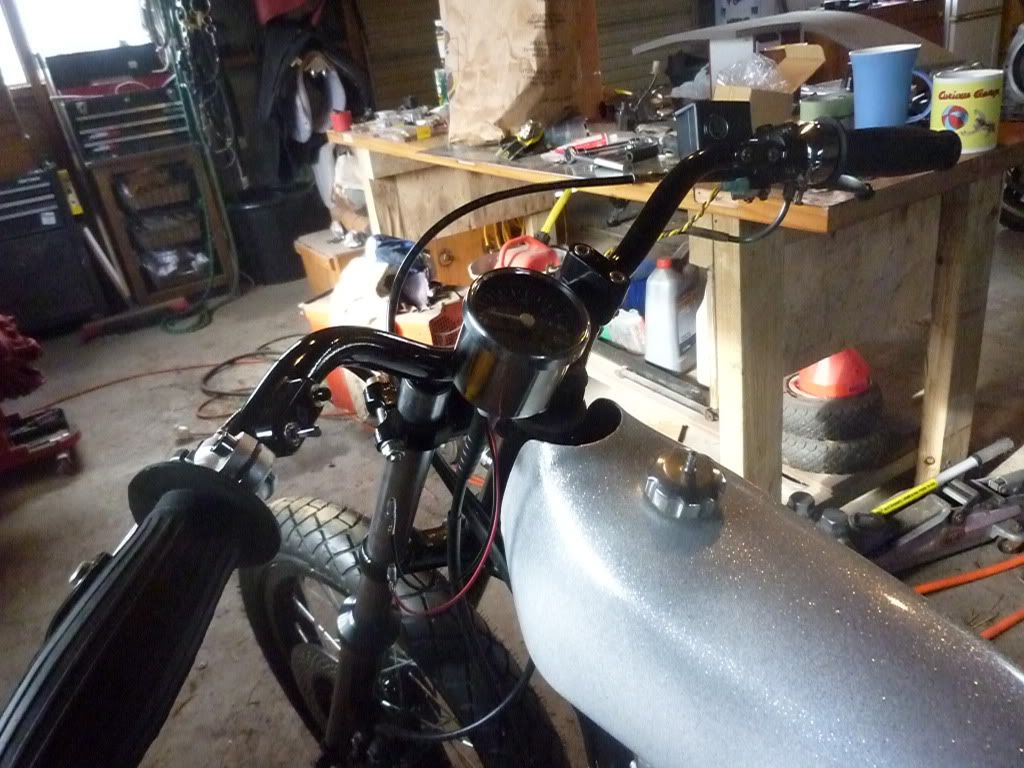

What do you think of the speedo location? I need to design a bracket that fits the speedo and the dummy lights I need for the revin.
