 Metal work

Go down
Go to page : 1, 2  Next
AuthorMessage
Cam
Serial Bike Abuser
Serial Bike Abuser
Cam

Posts : 261
Join date : 2010-04-30
Age : 43
Location : Upper Hutt

Metal work Empty
PostSubject: Metal work   Metal work EmptyMon Feb 20, 2012 10:29 pm

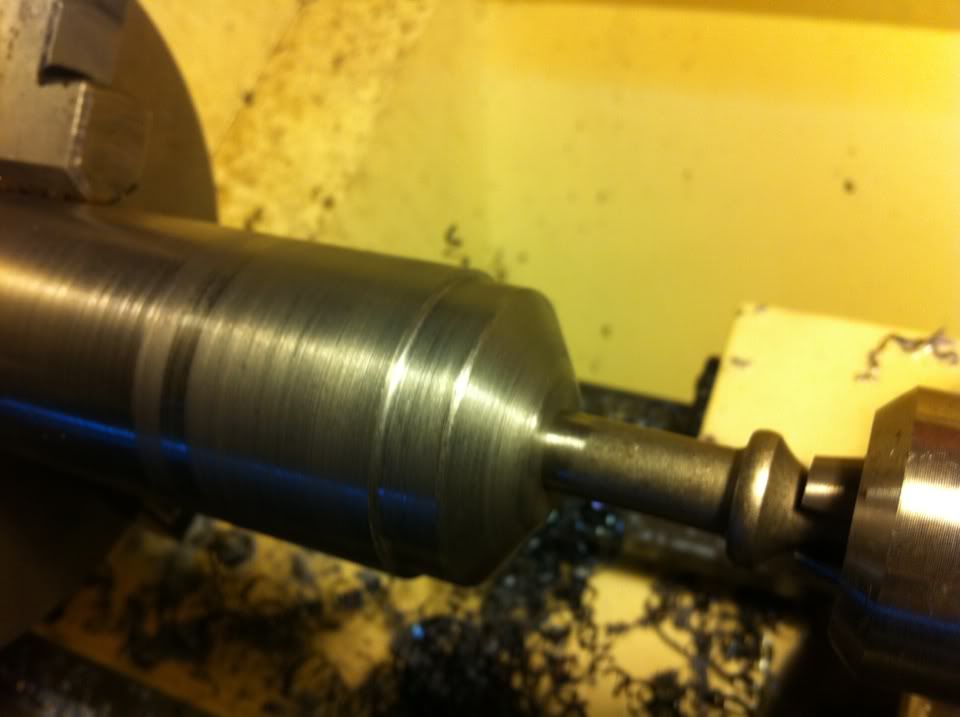

Started making a plainshing hammer. cheers
[img]Metal work IMG_6867[/img]

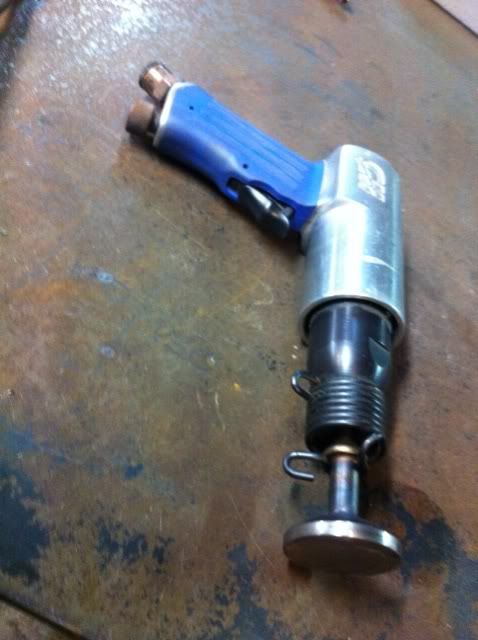

Cut off a chesiel to make my top die.Turned up a bit of 4041 high tensile steel and welded together.
[img]Metal work IMG_9325[/img]
Next will turn up different radius bottom dies. bounce
Back to top Go down
View user profile
Woody
Serial Bike Abuser
Serial Bike Abuser
Woody

Posts : 1302
Join date : 2010-04-26
Location : Wellington

Metal work Empty
PostSubject: Re: Metal work   Metal work EmptyTue Feb 21, 2012 8:06 am

Nice Cam, Feel free to leave that round at home for as long as you want. Wink
Back to top Go down
View user profile http://ftw-nz.blogspot.co.nz/
Cam
Serial Bike Abuser
Serial Bike Abuser
Cam

Posts : 261
Join date : 2010-04-30
Age : 43
Location : Upper Hutt

Metal work Empty
PostSubject: Re: Metal work   Metal work EmptyThu Feb 23, 2012 6:09 pm

Woody wrote:
Nice Cam, Feel free to leave that round at home for as long as you want. Wink

Good idea then we can piss off Mad youre neighbours. Razz
Back to top Go down
View user profile
Woody
Serial Bike Abuser
Serial Bike Abuser
Woody

Posts : 1302
Join date : 2010-04-26
Location : Wellington

Metal work Empty
PostSubject: Re: Metal work   Metal work EmptyThu Feb 23, 2012 7:19 pm

I don't know if ya could piss them off any more than I already do, But your more than welcome to try. Twisted Evil Laughing
Back to top Go down
View user profile http://ftw-nz.blogspot.co.nz/
Cam
Serial Bike Abuser
Serial Bike Abuser
Cam

Posts : 261
Join date : 2010-04-30
Age : 43
Location : Upper Hutt

Metal work Empty
PostSubject: Re: Metal work   Metal work EmptySat Apr 21, 2012 1:27 pm

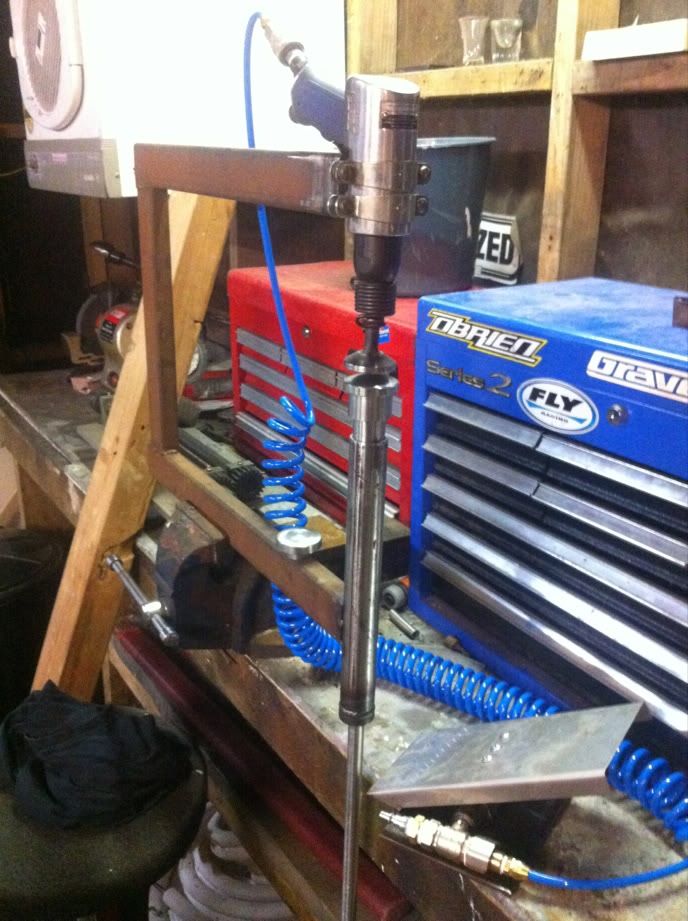

Not quite finished,but gave it a run,couldnt wait bounce
[img]Metal work IMG_5229[/img]

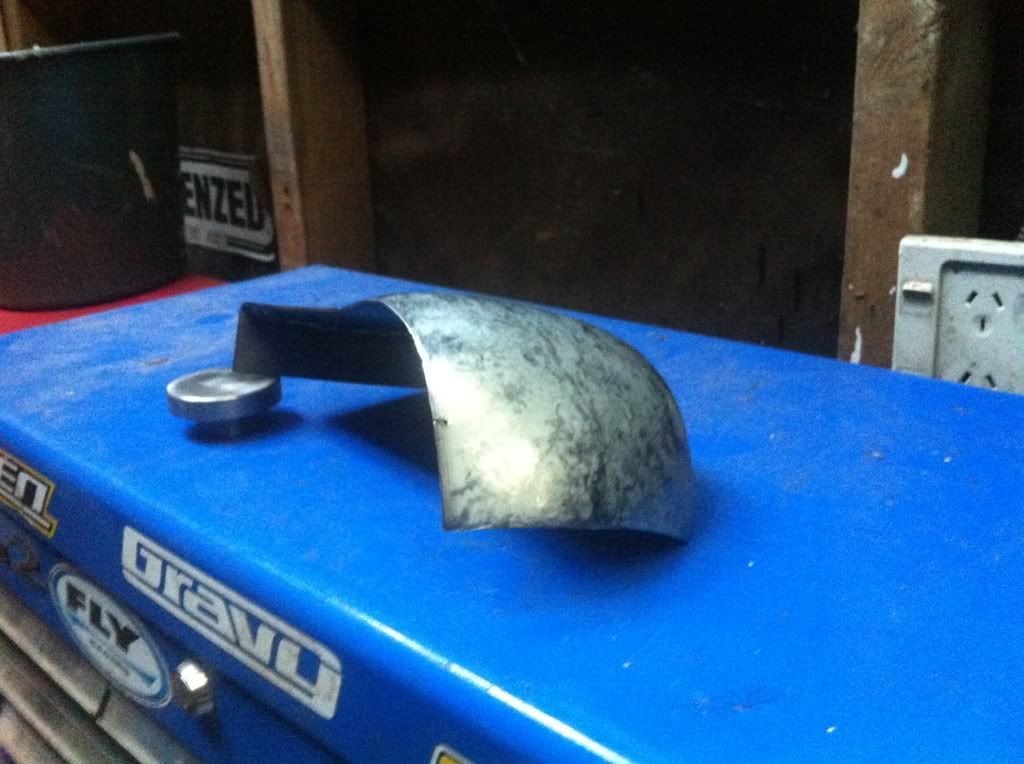

works alright,.This only a few minutes after a bash on the bag. Twisted Evil
[img]Metal work IMG_5341-1[/img]
Back to top Go down
View user profile
mike
Serial Bike Abuser
Serial Bike Abuser
mike

Posts : 628
Join date : 2010-05-16
Age : 37
Location : brisbane

Metal work Empty
PostSubject: Re: Metal work   Metal work EmptySun Apr 22, 2012 8:10 pm

ooo flash pedal Suspect

wats it like on ya compressor??? doese it use a lot ov air?
Back to top Go down
View user profile
Cam
Serial Bike Abuser
Serial Bike Abuser
Cam

Posts : 261
Join date : 2010-04-30
Age : 43
Location : Upper Hutt

Metal work Empty
PostSubject: Re: Metal work   Metal work EmptySun Jun 10, 2012 6:19 pm

mike wrote:
ooo flash pedal Suspect

wats it like on ya compressor??? doese it use a lot ov air?

Uses abit of air.Bit it speeds thing up heaps.
Used it on Dougs tank over weekend.


[img]Metal work IMG_8669[/img]

Metal work IMG_8508[/img][/img]
Back to top Go down
View user profile
PAN/SHOVEL
Serial Bike Abuser
Serial Bike Abuser
PAN/SHOVEL

Posts : 608
Join date : 2010-05-02

Metal work Empty
PostSubject: Re: Metal work   Metal work EmptySun Jun 10, 2012 7:40 pm

Looking good cam
Back to top Go down
View user profile
Woody
Serial Bike Abuser
Serial Bike Abuser
Woody

Posts : 1302
Join date : 2010-04-26
Location : Wellington

Metal work Empty
PostSubject: Re: Metal work   Metal work EmptyMon Jun 11, 2012 8:13 am

Yeah nice work Cam. Twisted Evil
Back to top Go down
View user profile http://ftw-nz.blogspot.co.nz/
Cam
Serial Bike Abuser
Serial Bike Abuser
Cam

Posts : 261
Join date : 2010-04-30
Age : 43
Location : Upper Hutt

Metal work Empty
PostSubject: Re: Metal work   Metal work EmptyMon Jun 11, 2012 2:28 pm

Cheers guys.Forgot how much I enjoyed metal shaping. Twisted Evil cheers
Back to top Go down
View user profile
Cam
Serial Bike Abuser
Serial Bike Abuser
Cam

Posts : 261
Join date : 2010-04-30
Age : 43
Location : Upper Hutt

Metal work Empty
PostSubject: Re: Metal work   Metal work EmptyTue Jun 12, 2012 5:05 pm

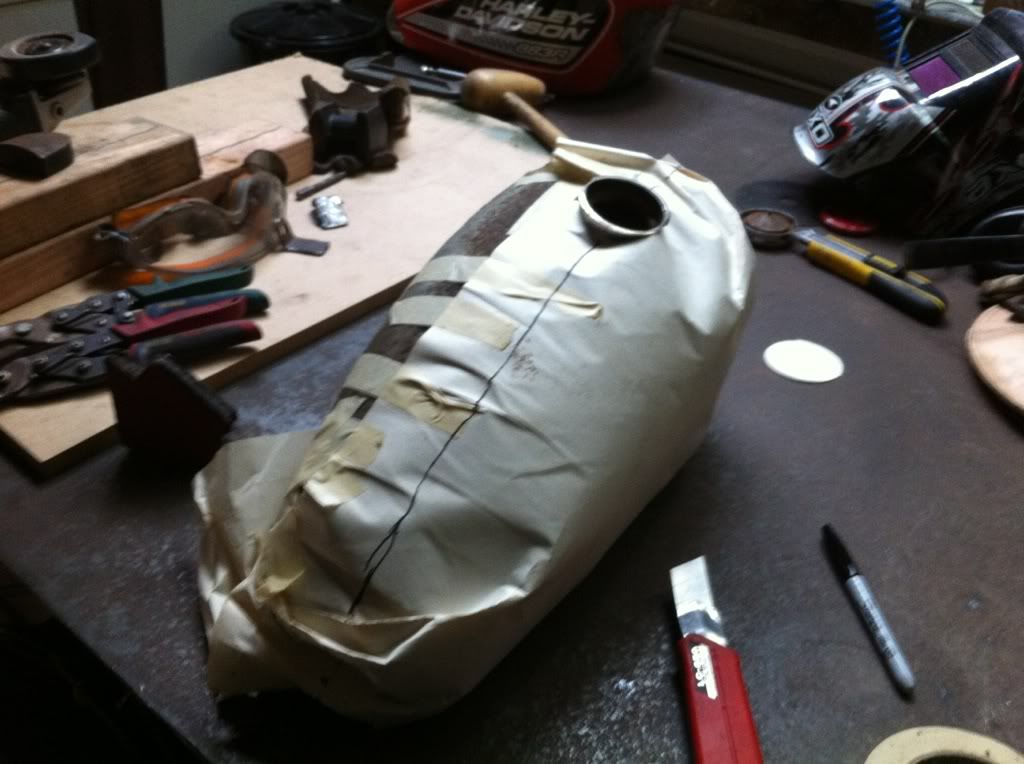

Started work on my tank for the ironhead.Thought Id share my learning experince.Gona try and make it in two halfs.(would be easy in three parts but wheres the fun in that.) Rolling Eyes
[img]Metal work IMG_4855[/img]

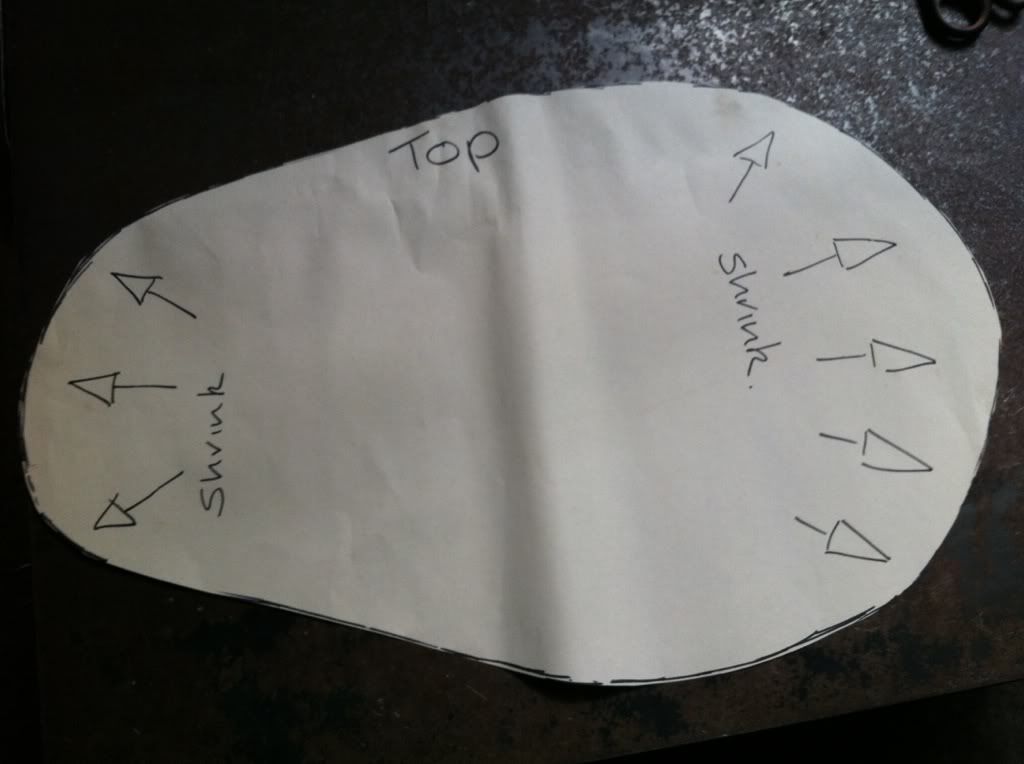

Started by making a paper pattern.
[img]Metal work IMG_6136[/img]

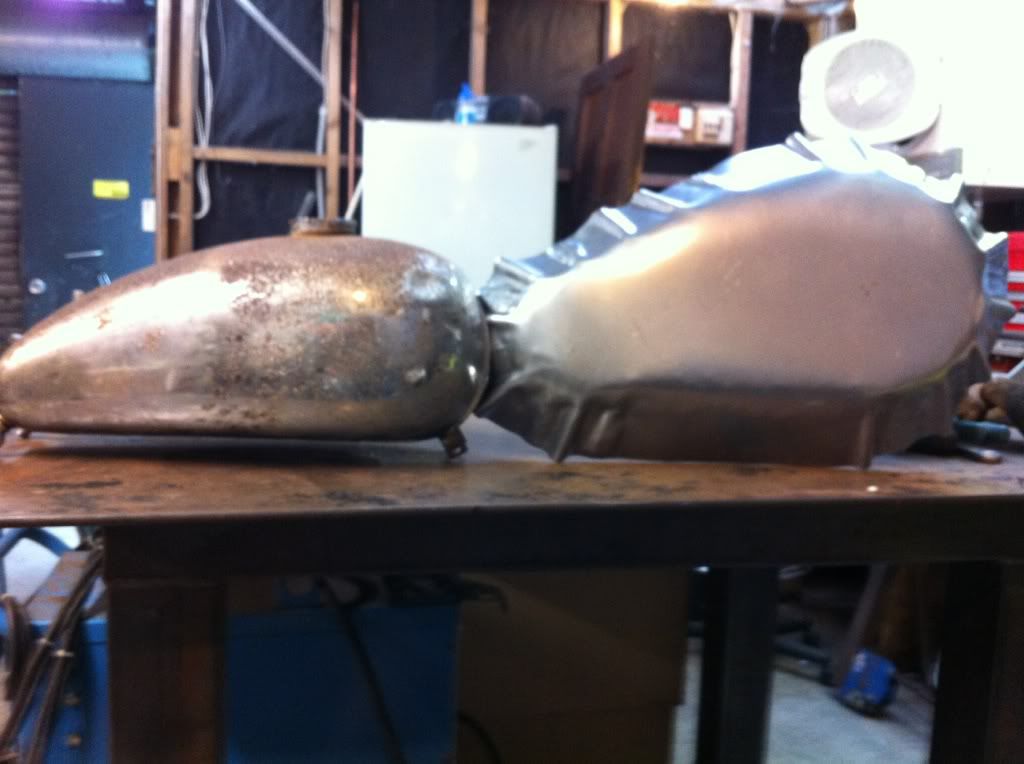

Got pattern done and formlulated a plan scratch
[img]Metal work IMG_1422[/img]
Progress after making tucks using my tucking fork.Will have to go on hold till I make a shrinking hammer out of plastic.My wooden bossing mallets cant hack it. Crying or Very sad
Back to top Go down
View user profile
Cam
Serial Bike Abuser
Serial Bike Abuser
Cam

Posts : 261
Join date : 2010-04-30
Age : 43
Location : Upper Hutt

Metal work Empty
PostSubject: Re: Metal work   Metal work EmptyWed Jun 13, 2012 4:54 pm

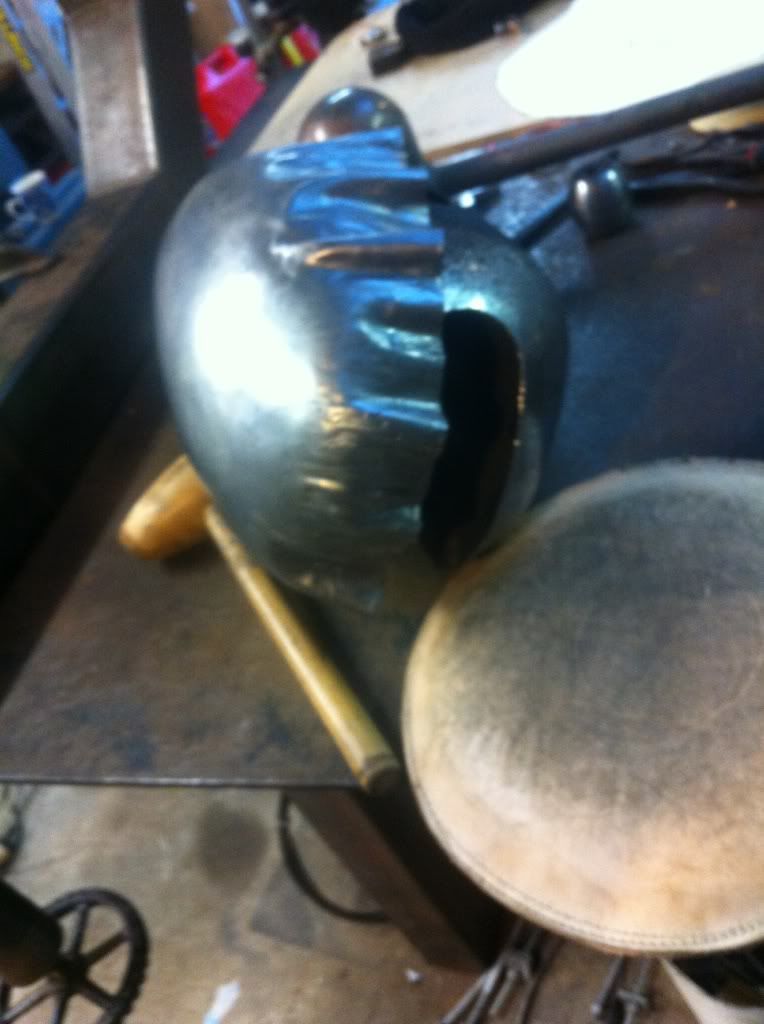

Gettin closer,but taking alot more time than doing it in smaller peices.
[img]Metal work IMG_4838[/img]
Back to top Go down
View user profile
Cam
Serial Bike Abuser
Serial Bike Abuser
Cam

Posts : 261
Join date : 2010-04-30
Age : 43
Location : Upper Hutt

Metal work Empty
PostSubject: Re: Metal work   Metal work EmptyTue Jun 19, 2012 5:13 pm

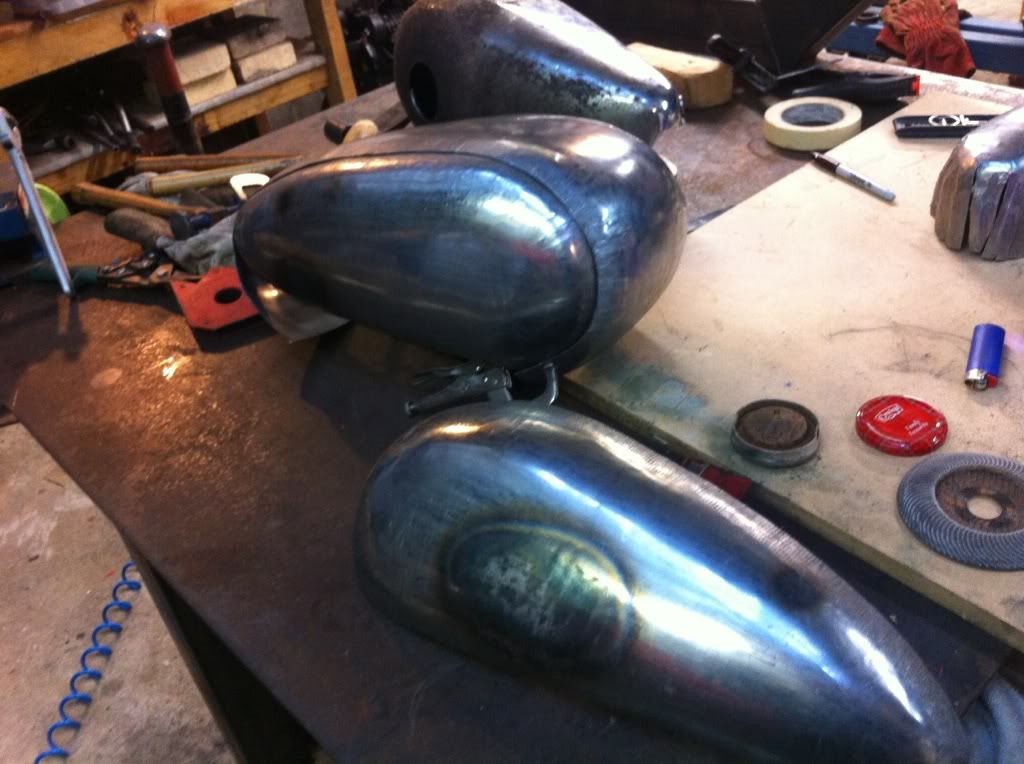

Had to take another approach at this tank Sad .Metal started spliting on first attempt. Mad
[img]Metal work IMG_3661[/img]
Access when shaping and working on welds is important to think about. scratch
Quite abit different than original tank.But it will do.
Back to top Go down
View user profile
brett7777
Serial Bike Abuser
Serial Bike Abuser
brett7777

Posts : 1425
Join date : 2010-04-27
Age : 55
Location : Waitakere

Metal work Empty
PostSubject: Re: Metal work   Metal work EmptyTue Jun 19, 2012 6:54 pm

looks pretty cool, dunno nothing bout metal shaping but is quite interesting to see that evolve
Back to top Go down
View user profile http://bobbers-r-us.weebly.com/
Cam
Serial Bike Abuser
Serial Bike Abuser
Cam

Posts : 261
Join date : 2010-04-30
Age : 43
Location : Upper Hutt

Metal work Empty
PostSubject: Re: Metal work   Metal work EmptyWed Jun 20, 2012 4:54 pm

brett7777 wrote:
looks pretty cool, dunno nothing bout metal shaping but is quite interesting to see that evolve
Thanks.At this point in my learning curve about metalshaping,I'm interested to see what I can make it look like. bounce affraid
Back to top Go down
View user profile
Cam
Serial Bike Abuser
Serial Bike Abuser
Cam

Posts : 261
Join date : 2010-04-30
Age : 43
Location : Upper Hutt

Metal work Empty
PostSubject: Re: Metal work   Metal work EmptySat Jun 23, 2012 4:08 pm

Started this thread hoping other would be metalshapers would show us what they been up to.
Soooo, what you got.
Back to top Go down
View user profile
Cam
Serial Bike Abuser
Serial Bike Abuser
Cam

Posts : 261
Join date : 2010-04-30
Age : 43
Location : Upper Hutt

Metal work Empty
PostSubject: Re: Metal work   Metal work EmptySun Jun 24, 2012 7:49 pm

Started work on a rear fender for the ironhead.
[img]Metal work IMG_5200[/img]
making out of 3mm 5005 aluminium.Shapes alot quicker than steel.
Back to top Go down
View user profile
mike
Serial Bike Abuser
Serial Bike Abuser
mike

Posts : 628
Join date : 2010-05-16
Age : 37
Location : brisbane

Metal work Empty
PostSubject: Re: Metal work   Metal work EmptySun Jun 24, 2012 8:48 pm

sweet ull have to re-do the tank outa alloy now Suspect
wats the plan for the oil?
Back to top Go down
View user profile
Woody
Serial Bike Abuser
Serial Bike Abuser
Woody

Posts : 1302
Join date : 2010-04-26
Location : Wellington

Metal work Empty
PostSubject: Re: Metal work   Metal work EmptySun Jun 24, 2012 9:44 pm

Nice job mate looks very pro cyclops
Back to top Go down
View user profile http://ftw-nz.blogspot.co.nz/
rICEr
Apprentice
Apprentice
rICEr

Posts : 23
Join date : 2012-03-03
Age : 43
Location : Wellington

Metal work Empty
PostSubject: Re: Metal work   Metal work EmptySun Jun 24, 2012 10:23 pm

Looking trick dude! You been a busy boy lately?
Back to top Go down
View user profile http://www.motometal.co.nz
Cam
Serial Bike Abuser
Serial Bike Abuser
Cam

Posts : 261
Join date : 2010-04-30
Age : 43
Location : Upper Hutt

Metal work Empty
PostSubject: Re: Metal work   Metal work EmptyTue Jun 26, 2012 8:38 pm

Think I'll put ali tank on next bike(just gotta figure out how to get another one of these cool frames Suspect ).not sure bout oil tank yet. scratch
Back to top Go down
View user profile
Cam
Serial Bike Abuser
Serial Bike Abuser
Cam

Posts : 261
Join date : 2010-04-30
Age : 43
Location : Upper Hutt

Metal work Empty
PostSubject: Re: Metal work   Metal work EmptySun Sep 30, 2012 10:08 am

Started on a tank.Not sure what bike to put on but needed to get out of my head Razz .
[img]Metal work Photo-4[/img]

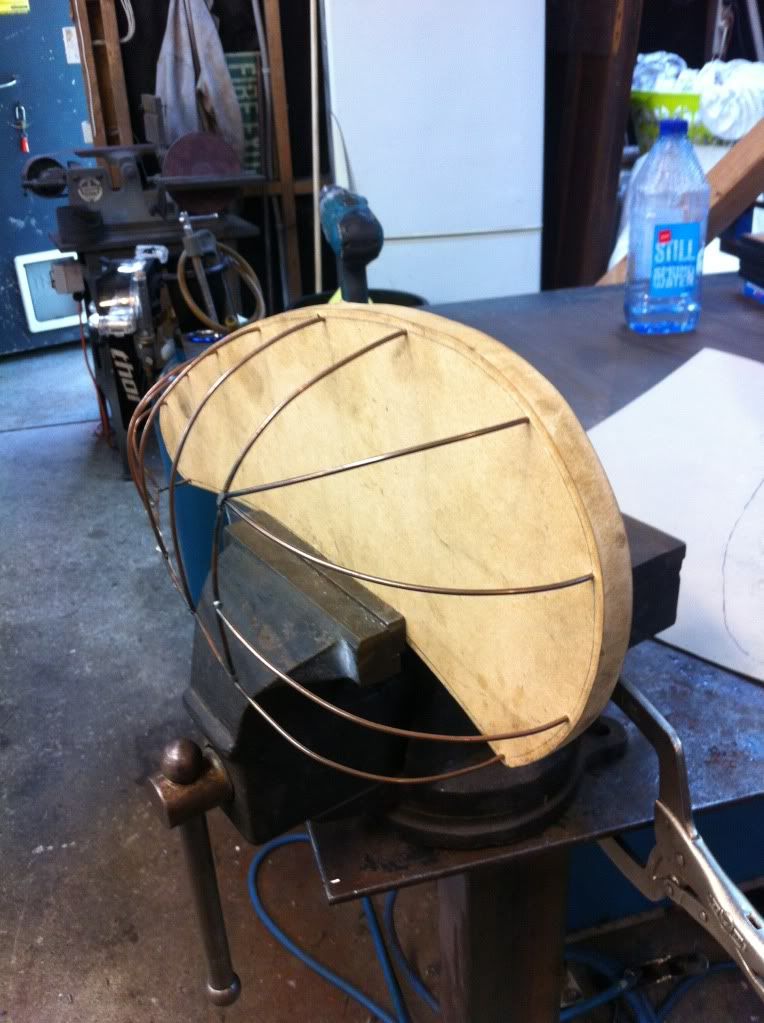

Wire buck.
[img]Metal work Photo-6[/img]

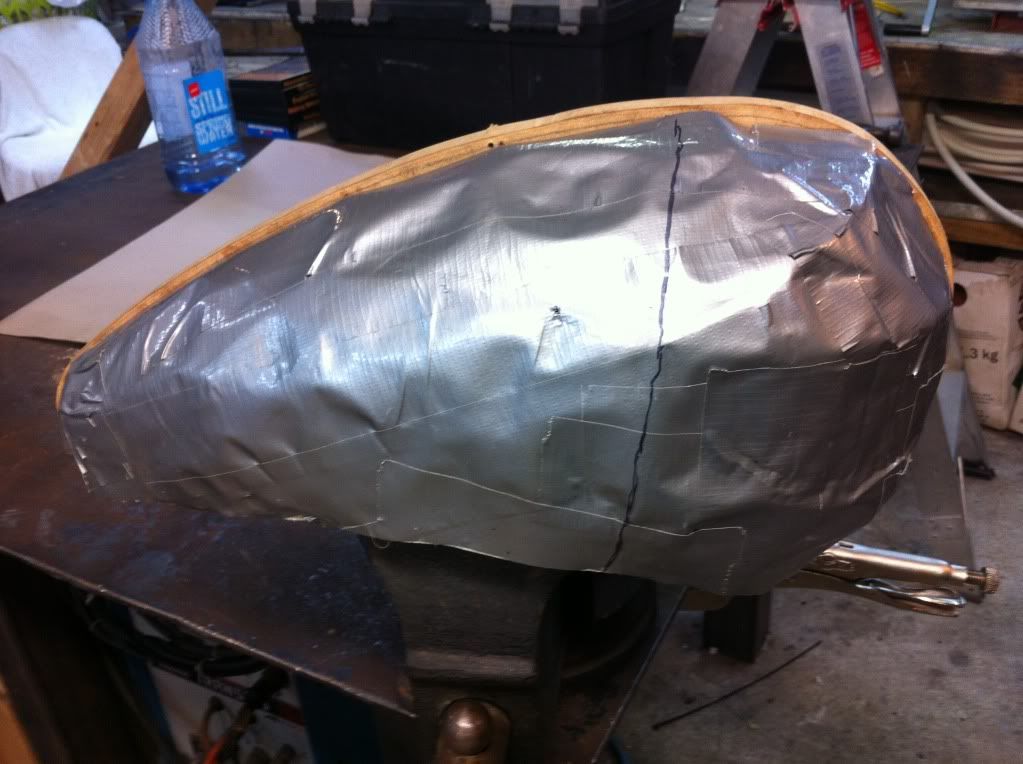

Made a pattern using duct tape.Was gona try make top out of two pieces but found to much stretching so making out of four.
[img]Metal work Photo-8[/img]

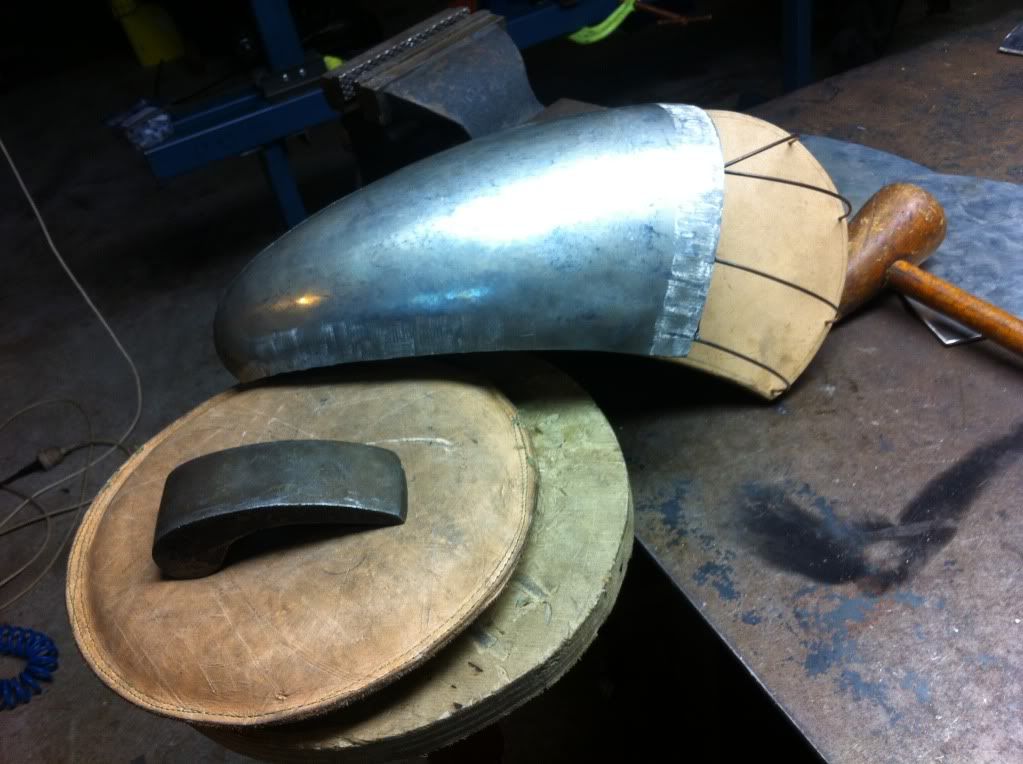

First piece
[img]Metal work Photo-7[/img]

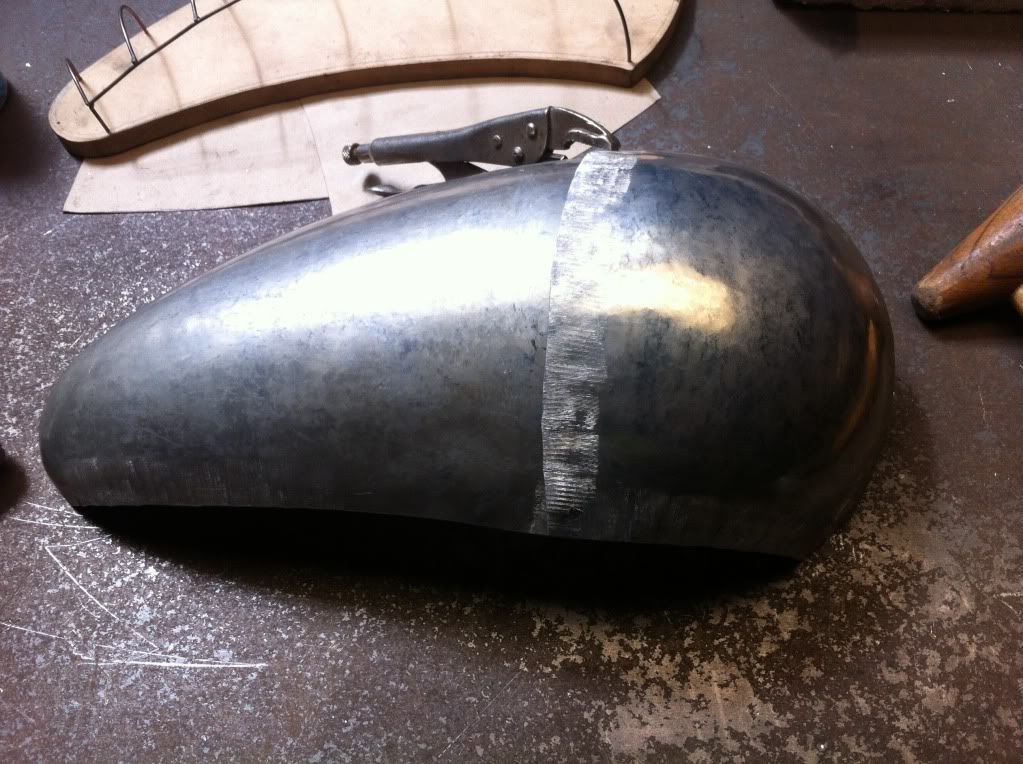

Four pieces was a good idea. Twisted Evil Only took bout 2 1/2 hrs to do and still got plenty thick ness in panels for metal finishing.
Back to top Go down
View user profile
imperial00
Apprentice
Apprentice


Posts : 47
Join date : 2012-07-28

Metal work Empty
PostSubject: Re: Metal work   Metal work EmptySun Sep 30, 2012 2:13 pm

nice work! how do you get it to start such a convex curve? just the tucking fork or quite a bit of hammer work as well?
Back to top Go down
View user profile
Cam
Serial Bike Abuser
Serial Bike Abuser
Cam

Posts : 261
Join date : 2010-04-30
Age : 43
Location : Upper Hutt

Metal work Empty
PostSubject: Re: Metal work   Metal work EmptySun Sep 30, 2012 6:50 pm

imperial00 wrote:
nice work! how do you get it to start such a convex curve? just the tucking fork or quite a bit of hammer work as well?

Couldnt use fork on this one,Wont fit.Using 3mm 5005 aluminum.Used hand shrinker and hammer and bag.
Back to top Go down
View user profile
imperial00
Apprentice
Apprentice


Posts : 47
Join date : 2012-07-28

Metal work Empty
PostSubject: Re: Metal work   Metal work EmptySun Sep 30, 2012 8:08 pm

Cam wrote:
imperial00 wrote:
nice work! how do you get it to start such a convex curve? just the tucking fork or quite a bit of hammer work as well?

Couldnt use fork on this one,Wont fit.Using 3mm 5005 aluminum.Used hand shrinker and hammer and bag.

with aluminium how do you do your welded joins-
flat cut edge butted and welded?
folded edge butted together and welded?
overlapped and welded?
