 dragbike re vamp anyone?

View previous topic View next topic Go down
Go to page : 1, 2  Next
AuthorMessage
imperial00
Apprentice
Apprentice


Posts : 47
Join date : 2012-07-28

PostSubject: dragbike re vamp anyone?   Sat Sep 15, 2012 9:19 pm

anyone interested in seeing a bit of a tart up on a dragbike?gs 550 supercharged.140mph bike.
that motor and the frame in the background still hold a nz record.nice to have them in close company again...





looking better already after removing a few bits


this pic posted previously.bike was put together in a bit of a hurry for a race meet.

have to give it a quick refab and put the porky lil bitch on a diet.and loose the junk in the trunk rear.it has a fat ass seat going on..
anyone want to see more and progress?
Back to top Go down
View user profile
Woody
Serial Bike Abuser
Serial Bike Abuser


Posts : 1302
Join date : 2010-04-26
Location : Wellington

PostSubject: Re: dragbike re vamp anyone?   Sun Sep 16, 2012 12:08 am

He'll yeah mate keep them coming. cyclops
Back to top Go down
View user profile http://ftw-nz.blogspot.co.nz/
mike
Serial Bike Abuser
Serial Bike Abuser


Posts : 628
Join date : 2010-05-16
Age : 35
Location : brisbane

PostSubject: Re: dragbike re vamp anyone?   Sun Sep 16, 2012 11:28 am

yeah for sure
Back to top Go down
View user profile
imperial00
Apprentice
Apprentice


Posts : 47
Join date : 2012-07-28

PostSubject: Re: dragbike re vamp anyone?   Sun Sep 16, 2012 7:16 pm

not a whole load done today.got side tracked as per usual.while dismantling bike i noticed it is seriously overbuilt in areas.the top clamp being one.the bars were mounted to this but it made the bike real high in the front.a set of clipons have been ordered so i decided to lighten the top clamp.milled a pocket underneath and reshaped the rear part.no scales but i reckon i got close to halving its weight.i will do the bottom one and waist the steering shaft as well.


Back to top Go down
View user profile
imperial00
Apprentice
Apprentice


Posts : 47
Join date : 2012-07-28

PostSubject: Re: dragbike re vamp anyone?   Sat Sep 22, 2012 7:15 pm

i are going to replace the antiquated brake system with something a bit newer/lighter with better braking power.

i'd decided to shorter the forks by 50mm.as per usual found other issues.bent leg,dented lower.straightened leg.honed lower,shortened,new seals/oil- all good.

working on new blower manifold.old one was super flimsy and has split in places.a slightly new design too which hopefully will work better.

lastly-new race lid for the season-thanks to guys at city motorcycles here in nelson.
Back to top Go down
View user profile
imperial00
Apprentice
Apprentice


Posts : 47
Join date : 2012-07-28

PostSubject: Re: dragbike re vamp anyone?   Sat Sep 22, 2012 10:02 pm

imperial00 wrote:
not a whole load done today.got side tracked as per usual.while dismantling bike i noticed it is seriously overbuilt in areas.the top clamp being one.the bars were mounted to this but it made the bike real high in the front.a set of clipons have been ordered so i decided to lighten the top clamp.milled a pocket underneath and reshaped the rear part.no scales but i reckon i got close to halving its weight.i will do the bottom one and waist the steering shaft as well.



not happy with these clamps.when whom ever built these they bored the steerer hole with too much offset and plugged the top,and the bottom.....the bottom is too sketchy for my liking.i are going to machine a new set...hopefully sooner rather than later as i want this back to a roller by the end of the week or close to!
Back to top Go down
View user profile
imperial00
Apprentice
Apprentice


Posts : 47
Join date : 2012-07-28

PostSubject: Re: dragbike re vamp anyone?   Wed Sep 26, 2012 7:42 pm

got manifold bolted to engine.need to get supercharger mounted then work out the remaining part.

lightened the fork brace and made it look a little less industrial.

and lastly got the top clamp partially machined.need to drill/tap/counterbore clamp cap srew holes and cut the slit for the clamp.

Back to top Go down
View user profile
Woody
Serial Bike Abuser
Serial Bike Abuser


Posts : 1302
Join date : 2010-04-26
Location : Wellington

PostSubject: Re: dragbike re vamp anyone?   Wed Sep 26, 2012 9:34 pm

Nice mate. Wish you could slow down a bit I can't keep up Mad
Back to top Go down
View user profile http://ftw-nz.blogspot.co.nz/
imperial00
Apprentice
Apprentice


Posts : 47
Join date : 2012-07-28

PostSubject: Re: dragbike re vamp anyone?   Wed Sep 26, 2012 10:01 pm

Woody wrote:
Nice mate. Wish you could slow down a bit I can't keep up Mad

ha -neither can i !!!
Back to top Go down
View user profile
Cam
Serial Bike Abuser
Serial Bike Abuser


Posts : 261
Join date : 2010-04-30
Age : 41
Location : Upper Hutt

PostSubject: Re: dragbike re vamp anyone?   Fri Sep 28, 2012 7:32 am

Did you do the triple clamp by hand or cnc?
Back to top Go down
View user profile
imperial00
Apprentice
Apprentice


Posts : 47
Join date : 2012-07-28

PostSubject: Re: dragbike re vamp anyone?   Fri Sep 28, 2012 8:46 pm

Cam wrote:
Did you do the triple clamp by hand or cnc?

cheated-cnc.
will drill/tap and cut the slit manually though.
Back to top Go down
View user profile
Cam
Serial Bike Abuser
Serial Bike Abuser


Posts : 261
Join date : 2010-04-30
Age : 41
Location : Upper Hutt

PostSubject: Re: dragbike re vamp anyone?   Fri Sep 28, 2012 9:13 pm

I dont think cnc is cheating study scratch bounce affraid <-My learning curve so far. Razz

How long is the convert to gcode and machine?
Back to top Go down
View user profile
imperial00
Apprentice
Apprentice


Posts : 47
Join date : 2012-07-28

PostSubject: Re: dragbike re vamp anyone?   Fri Sep 28, 2012 9:36 pm

Cam wrote:
I dont think cnc is cheating study scratch bounce affraid <-My learning curve so far. Razz

ha tis like that!

How long is the convert to gcode and machine?

huh? i draw a 2d picture on bobcad program.then choose tools (size/type)and the tool path (from contours on the drawing)
then enter depths of cut/roughing/finishing.speeds/feeds and a few other variables.then hit the create program button.too easy!!!
run time on these were about 15mins a side.
Back to top Go down
View user profile
imperial00
Apprentice
Apprentice


Posts : 47
Join date : 2012-07-28

PostSubject: Re: dragbike re vamp anyone?   Fri Sep 28, 2012 9:37 pm

imperial00 wrote:
Cam wrote:
I dont think cnc is cheating study scratch bounce affraid <-My learning curve so far. Razz

ha tis like that!

How long is the convert to gcode and machine?

huh? i draw a 2d picture on bobcad program.then choose tools (size/type)and the tool path (from contours on the drawing)
then enter depths of cut/roughing/finishing.speeds/feeds and a few other variables.then hit the create program button.too easy!!!
run time on these were about 15mins a side.

thats why i call it cheating Smile
Back to top Go down
View user profile
Cam
Serial Bike Abuser
Serial Bike Abuser


Posts : 261
Join date : 2010-04-30
Age : 41
Location : Upper Hutt

PostSubject: Re: dragbike re vamp anyone?   Fri Sep 28, 2012 9:59 pm

study study, scratch =think about what software I need, bounce =get excited affraid Price of software.

Found some free trail software to use to get me going.

Back to top Go down
View user profile
imperial00
Apprentice
Apprentice


Posts : 47
Join date : 2012-07-28

PostSubject: Re: dragbike re vamp anyone?   Sat Sep 29, 2012 7:13 am

Cam wrote:
study study, scratch =think about what software I need, bounce =get excited affraid Price of software.

Found some free trail software to use to get me going.


ha i got the emoticons but fully understand the explanation,especially the afraid-i just recently spent what was another bike or maybe two on a new lathe,guillotine and folder.was a hard decision,fun toys(motard or iron sporty) or creative toys....need to make some $ with them now to buy the fun stuff.
the huh was for the convert to g codes-that'll suck.once you get the lingo memorised it'll be a piece of cake(good luck) Suspect
Back to top Go down
View user profile
imperial00
Apprentice
Apprentice


Posts : 47
Join date : 2012-07-28

PostSubject: Re: dragbike re vamp anyone?   Sat Sep 29, 2012 9:06 pm

nuts ....for steerer

steerer tube

bottom clamp

clamps ready to rock and roll

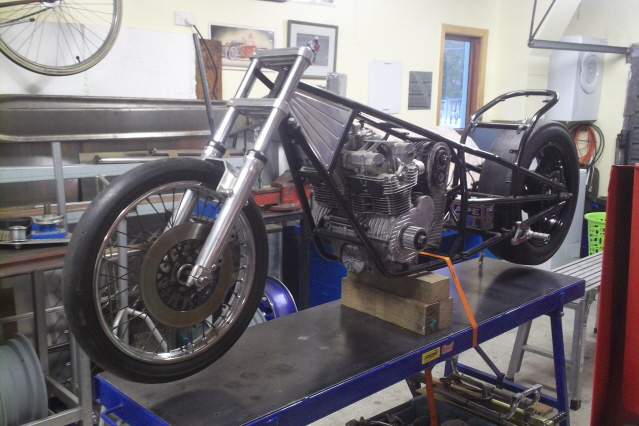

fitted-got a roller almost-gotta do wheel spacers tomorrow and rebend the fork brace as its a bit out and is trying to spread the forks at present.


Back to top Go down
View user profile
imperial00
Apprentice
Apprentice


Posts : 47
Join date : 2012-07-28

PostSubject: Re: dragbike re vamp anyone?   Sun Sep 30, 2012 9:29 am

[quote]
manifold bolted on

lightened the fork brace and made it look a little less industrial.

[quote]

ha-i say i wanted to make the fork brace less industrial-but that manifold is all industry! no apologies there though as the last one wouldn't hold boost pressure.it kinda gets buried anyhow...
Back to top Go down
View user profile
Woody
Serial Bike Abuser
Serial Bike Abuser


Posts : 1302
Join date : 2010-04-26
Location : Wellington

PostSubject: Re: dragbike re vamp anyone?   Sun Sep 30, 2012 9:32 am

Those tree's turned out real nice Andy. More shots of the machinery in the garage would be nice, We all need
something to aspire too cyclops
Back to top Go down
View user profile http://ftw-nz.blogspot.co.nz/
imperial00
Apprentice
Apprentice


Posts : 47
Join date : 2012-07-28

PostSubject: Re: dragbike re vamp anyone?   Mon Oct 01, 2012 9:51 pm

no cnc goodness today... all manual.cut out a new blower support plate (thicker)

front brake caliper mount made from 7075 aluminium



on the end of the blower it has an inlet/outlet that had a damn ugly bung on it-i just couldn't leave it on there.
i told a lie before- i did cut the thread for this on a cnc lathe....




been wanting to cut these damn ugly m12 steering stop nuts off ever since i first saw them.going to do something hopefully a bit more aesthetically pleasing.
Back to top Go down
View user profile
imperial00
Apprentice
Apprentice


Posts : 47
Join date : 2012-07-28

PostSubject: Re: dragbike re vamp anyone?   Mon Oct 01, 2012 9:57 pm

Woody wrote:
Those tree's turned out real nice Andy. More shots of the machinery in the garage would be nice, We all need
something to aspire too cyclops

the good cnc toys are at work (day job). i will take some pics sometime (after the start of the drag season)of stuff in the shed.i have built a few of my own toys-english wheel,swage,planisher,linisher,bender,shrinker stretcher(i did buy just the jaws),i have a louvre punch setup i made that needs a frame made for it,various steel tables etc, a fully adjustable motorcycle frame jig that is nearly finished(need to buy $200 worth of bolts to finish it-thats even with a huge discount!),and other various things-press tools etc.
Back to top Go down
View user profile
imperial00
Apprentice
Apprentice


Posts : 47
Join date : 2012-07-28

PostSubject: Re: dragbike re vamp anyone?   Wed Oct 03, 2012 9:25 pm

last night i got the drilled disc fitted

fabbed up new steering stops,not fitted them yet-


got the new blower mount plate almost finished,needs a slot for the tensioner and maybe some lightening.

can fab last part of manifold now

overview of engine assembly-its a damn purposeful looking lump!
Back to top Go down
View user profile
imperial00
Apprentice
Apprentice


Posts : 47
Join date : 2012-07-28

PostSubject: Re: dragbike re vamp anyone?   Sun Oct 07, 2012 4:21 pm

full day on it yesterday-today a bit scattered in amongst the big race.i keep pushing hard to get this done and each time i do something i create more work-ie i had to remove the fuel tank-upon doing so i find it wasn't rubber mounted and had been mounted incorrectly so a weld repair and an alteration to the mounting system and i'm back on track.
handlebars turned up-with a 22mm bar??? wtf who uses 22mm? used the clamps and made new bars 22.2mm-no time to muck around sending them back.shortened up a brake line and fitted to the front.
got the steering stops tacked on.

got a mount for the damper machined and a tab made up and tacked to the frame(i will weld them fully later)


got the remainder of the intake manifold sussed and part welded.

a steady for the blower made-to take some load off the manifold.

new fuel tap and fittings so when sitting on the bike you can see it and easily reach it-also allowing for a continual downward flow to the carb,and the fuel line not running through the exhaust as it was previously.

and lastly a few overall views-i'm starting to like this bike visually now,once that damn shopping trolley rear seat bar is gone i will be happy.the frontal area is lower now too.



have sussed out mounting the gauges as well-i need to make some mounts,same with coils moving them to a position where the leads are tucked away from the handle bars a bit better.
Back to top Go down
View user profile
PAN/SHOVEL
Serial Bike Abuser
Serial Bike Abuser


Posts : 608
Join date : 2010-05-02

PostSubject: Re: dragbike re vamp anyone?   Sun Oct 07, 2012 7:55 pm

Looking good,and yea fuck that bar on the back has to go
Back to top Go down
View user profile
imperial00
Apprentice
Apprentice


Posts : 47
Join date : 2012-07-28

PostSubject: Re: dragbike re vamp anyone?   Tue Oct 09, 2012 10:11 pm

after nagging the sh*t outa another guy at work who runs a bigger cnc lathe i got him to spin up a bellmouth.cheers!!!

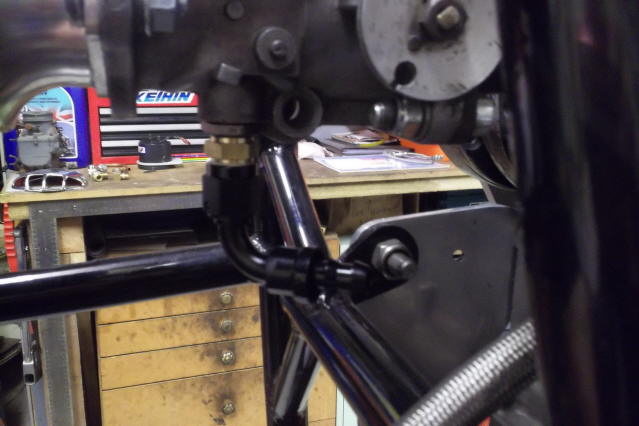

this is the "fuel bowl" yes that elbow-its also the needle seat,the fuel line connects direct to the needle seat via 3/8 fuel line-thirsty!!

mounted the boost gauge.don't know if you'll ever look at it.its within peripheral vision anyhow.

got coils mounted.

shift light mounted-might need a squidge more angle on it.

lastly muggins me tryin it all out for size- ride position,gauge position etc.tis comfortable-or will be once seat is sorted.
Back to top Go down
